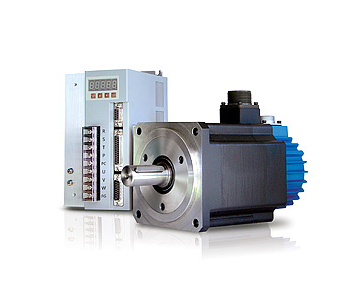

LDSM-ESD-V Brushless Motor
Specification | Description | |
---|---|---|
Type | ESDV-015 ESDV-020 ESDV-030 ESDV-040 |
|
Input Power | AC180V ~ 240V three-phase 50/60Hz | |
Encoder type | Incremental ( 1250ppr ) | |
Ambient | Temperature | Operating Temperature: 0 ~ 50 ℃ 、 Storage Temperature: -20 ~ 80 ℃ |
Humidity | Use / storage humidity below 85% RH | |
Vibration | below 0.5G | |
Control Mode | Speed | |
Speed input command | 0 ~ ± 10V ( CCW direction is + V input from the motor output shaft ) | |
Internal speed command | 3 speeds can be set by internal parameters | |
Linear acceleration and deceleration | The time can be set by internal parameters 10 ms ~ 10000 ms can be set to valid / invalid | |
Zero speed judgment | 0 ~ 255 rpm | |
Speed arrival judgment | Internal parameters can be set from 0 ~ rated speed | |
Servo lock | Internal parameters can be set to valid / invalid | |
Internal torque limit | 0 ~ 300% of rated torque | |
Manual operation | Available panel operation | |
Error message | Can remember 10 groups of past error history | |
Encoder signal output | A, B, C Phase line driver output | |
Panel | 5-digits LED display, four keys | |
Other | Input terminal | Servo ON, motor reverse, internal speed |
Output terminal | Alarm, zero speed / brake | |
Communication function ( RS232 ) | Parameter setting, execution status monitoring display |
