INDUSTRIAL DC BRUSHLESS MOTOR / DC INVERTER

Industrial DC Brushless Motor / DC Inverter Low noise, low electromagnetic interference, small size, light weight, high power, high torque and high efficiency The permanent magnet synchronous motor ( brushless motor ) and built-in permanent magnet synchronous motor improve the magnetic flux density by improving the design of the rotor to achieve high torque at high speeds. Load protection function.
DC Brushless Motor Brushless motor permanent magnet design makes the structure of the rotor simpler, has more advantages than traditional motors, and has a wide range of speed operation, which is very suitable for operating conditions with large load changes and speed changes.

HSD DC BRUSHLESS MOTOR DRIVER / DC INVERTER / DC GOVERNOR Brushless motor Driver

Brushless DC motor driver, using 32-bit DSP digital control, can control brushless DC, motor, has powerful functions, wide dynamic response, speed control range, high speed accuracy, very accurate size.
Power input : AC 180V ~ 240V single phase / three phase
Output current : 3 phases 0 ~ input voltage, positive wave
Speed control range :
Open loop ( w / o Hall Sensor and Encoder ) 1 : 100
Closed loop ( w / Economic Magnetic Encoder ) 1 : 200
High torque and high response
Despite the size of the stepper motor, it has high torque output when running at low speed. Suitable for applications in acceleration, responsiveness, frequent starting and stopping states.

APPLICATION RANGE

It has a wide range of applications, such as CNC processing machines, articulated robots, constant speed control, tracking systems, XY ( Z ) platforms, mechanism positioning ( fixed speed ) control, torque control and other automated controls. Small size, high efficiency, can apply mechanical precision positioning, use semi-closed loop system and full closed loop system, absolute position detection, self overload protection, general industrial machinery precision positioning application.

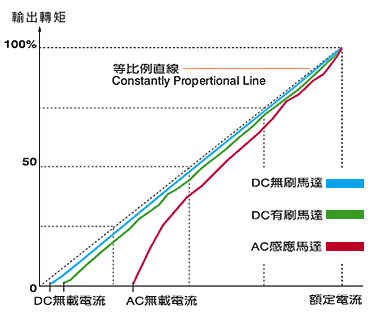

EXTREMELY LINEAR CURRENT & VS TORQUE CURVE

The output torque of the Brushless Motor is equal to the motor current and is very linear. It has more precise torque control than the traditional DC brush motor. It is very suitable for tension control such as center winding, unwinding, rewinding, etc. It can improve the accuracy of tension control and increase the coil diameter ratio to more than 1 : 12.

HIGH CONTINUOUS TORQUE OUTPUT & AT LOW SPEED RANGE

Brushless Motor torque performance is better than low-speed torque table. It has high torque at overspeed. It is very suitable for machines that need continuous operation at low speed, need to overcome heavy static friction, and need to overcome high inertia mass.
It has the advantages of zero-speed torsion, long-time holding at zero-speed, frequent starting, rapid acceleration and deceleration, quick start of acceleration, but current tripping, etc. Such as conveying equipment, overhead traveling, elevator control, stamping, folding bed, pressing table, plastic injection machine, feeding and other machinery.
