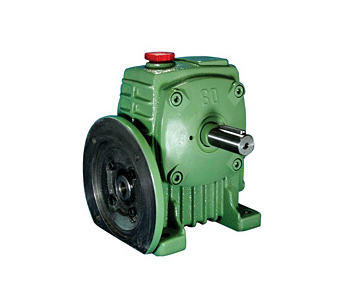

Single Reduction Worm Gear Reducer TMA
The worm is made of high-grade special steel with the latest special machine for rolling teeth, and then heat-treated, finely ground to have extremely high toughness and wear resistance. The worm gear is made of all-aluminum-copper copper. It is made of the latest hobbing machinery and the body is made of cast iron. The exterior is beautiful and the installation method can be changed. The worm and the turbine are at 90 degrees, so the high ratio itself has a braking function.

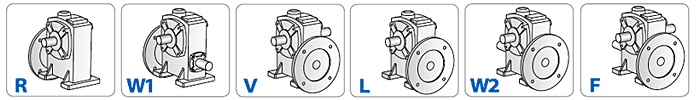

Worm Gear Reducer Axial selection
Axial of Worm Gear Reducer, the input shaft faces itself, the output shaft is the left shaft on the left, and the output shaft is the right shaft on the right.
Worm Gear Reducer's maintenance, generally the noise will increase after bearing wear and Vibration or starting torque will increase significantly.
Worm Gear Reducer Features
Worm Gear Reducer, the worm is made of high-grade special steel with the latest special machine for rolling teeth, and then heat-treated, finely ground to have extremely high toughness and wear resistance.
The worm gear is made of all-aluminum-copper copper. It is made of the latest hobbing machinery and the body is made of cast iron. The exterior is beautiful and the installation method can be changed.
